The HPN0240WB(L2)-25 24V8A battery charger is a professional-grade power supply tailored for electric wheelchairs, mobility scooters, and medical rehabilitation equipment. It is designed for lead acid and lithium-ion batteries and delivers a stable 8A output, ensuring efficient and fast charging. This charger is certified to ISO-7176 and EN60601 standards, making it ideal for hospital, clinical, and home care environments. It includes advanced safety features like over-voltage, over-current, and thermal protection. Its intelligent charging profile extends battery life while ensuring maximum performance. Compact, lightweight, and durable, the HP0240WB charger is a trusted choice for manufacturers, healthcare providers, and personal users seeking dependable power solutions for high-demand mobility devices.

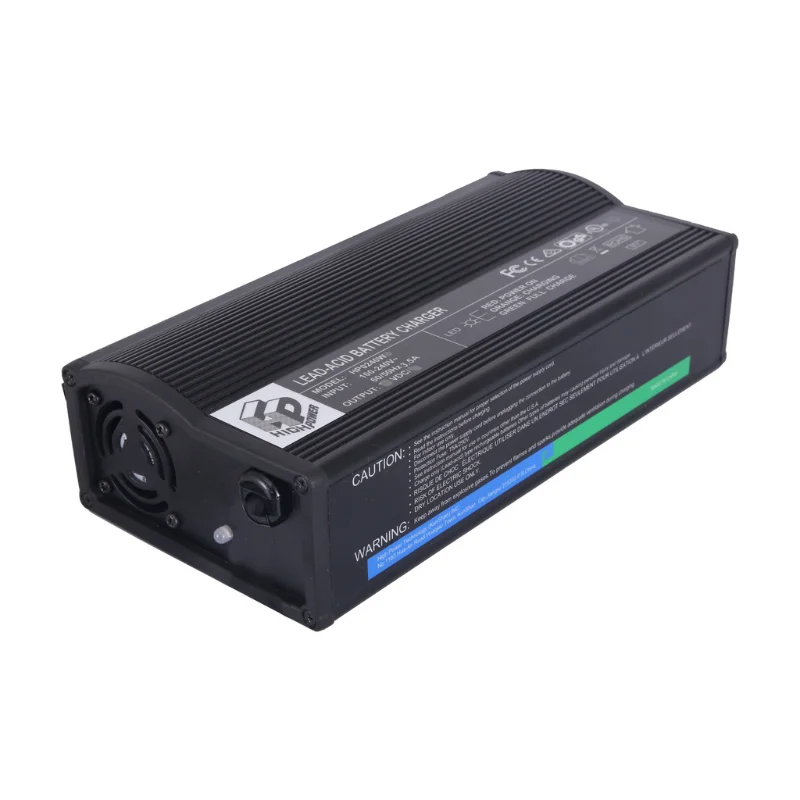

HPN0240WB(L2)-25 24V8A Lead Acid/Li-ion Wheelchair Battery Charger with ISO-7176 & EN60601 Certification
Categories HP Charger, HP0240W, ISO 7176-25 Battery charger for wheelchairs, Products
The HP0240WB(L2)-25 24V8A charger is a high-performance solution for charging electric wheelchairs and mobility scooters using lead acid or lithium-ion batteries. Certified to ISO-7176 and EN60601 standards, this charger is designed for healthcare and rehabilitation environments. With a compact design and built-in safety features, it ensures fast, safe, and reliable battery charging for medical mobility devices.
Specifications
HP0240WB(L2)-25 – 24V / 8A Lead Acid/Li-ion Battery Charger
Model No. | HP0240WB(L2)-25 (24V / 8A) |
Input Voltage | AC 100 – 240V (50/60Hz) |
Output Current | 8.0A ± 0.5A |
Output Voltage | 29.4V ± 0.2V |
Pre-Charge Current | 1.0A ± 0.2A |
Constant Current Fast Charge | 21V – 28V ± 1V / 8A |
Efficiency | ≥ 80% |
Protections | • Short Circuit – Stop charging • Over Current – Stop charging when > rating × 1.3 • Over Voltage – Stop charging when > Vmax × 1.05 • Feedback Protection – Stop charging • Low Voltage Protection – Stop charging • Timer Protection – Stop charging |
Operating Temperature | 0℃ ~ 40℃ |
Operating Humidity | 20% ~ 85% |
Storage Temperature | -20℃ ~ 70℃ |
Operating Height | ≤ 2000M |
Dimensions | 216 × 110 × 60 mm |
Weight / Case | 1.2kg / Black Plastic |
LED Indication | • Power On: Red • Charging: Orange • Full Charged: Green • Short Battery Error: Red Flash |
Series Available | • HP0240WL2 – 24V / 8A • HP0240WB – 24V / 8A |
Certifications | TUV-GS, UKCA, cTUVus, FCC, CE, SAA, KC, PSE, EN60601, ISO7176, IP54 |
Compliance | RoHS Compliant |
