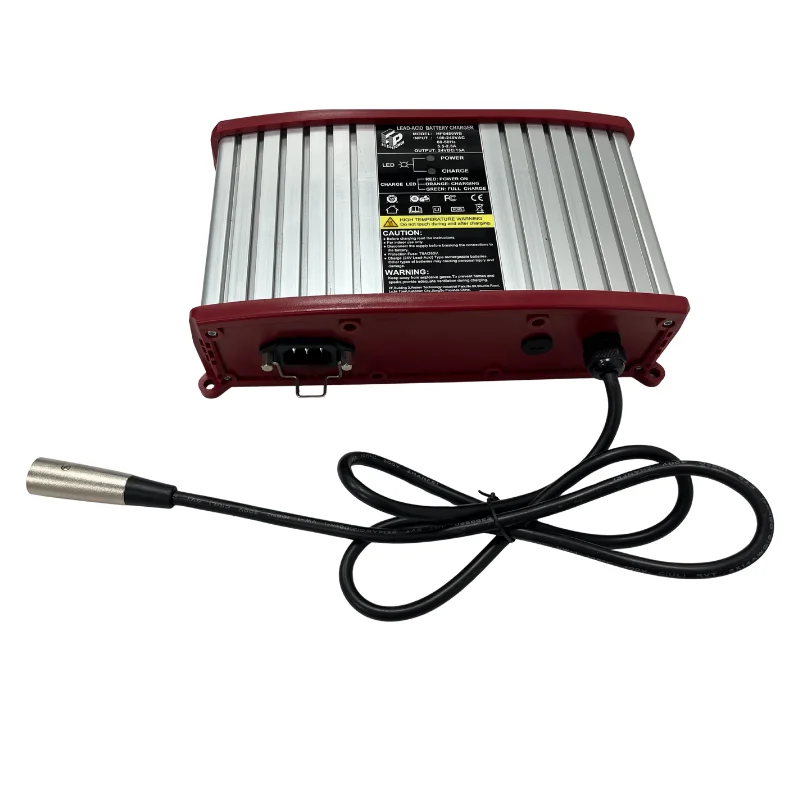

HP0480W 48V8A Charger for Golf Carts – Lead Acid/Lithium, IP54

Categories , ,
Model HP0480WD(L4)
Input Voltage 100-240V
Output  Voltage 48V
Output Current 8A
Dimension L*W*H(mm) 263*157*71
N.W.(kg) 2.5kg
Safety Certification TUV-GS,cTUVus,FCC,CE,IP54
Case Material Alumium
Battery Type Lead-acid(Li-ion)

The HP0480W 48V8A charger for golf carts delivers fast, reliable charging for both lead acid and lithium battery systems. Its aluminum housing and IP54 protection make it ideal for outdoor or garage environments. This 48v charger for golf carts ensures safety, efficiency, and long service life through advanced charging profiles and built-in protections.

Built to perform in both residential and commercial settings, the HP0480W 48V8A charger for golf carts offers smart charging for 48V lead acid and lithium batteries. Its robust aluminum housing, coupled with IP54 waterproof and dustproof protection, allows stable operation in garages, outdoor spaces, and mobile environments.

This 48v charger for golf carts supports quick and efficient charging cycles without compromising battery life. Intelligent charging algorithms automatically adapt to battery status, while built-in safety protections guard against overvoltage, overheating, and short circuits. With its high power output and rugged construction, the HP0480W is ideal for personal, fleet, or rental golf cart maintenance, ensuring consistent and dependable performance.

Specifications

HP0480WD(L4) – 48V 8A Li-ion/Lead acid Battery Charger (Vmax: 58.8V)

Model No. HP0480WD(L4) 48V 8A
Input AC Voltage AC 100~240V, 50/60Hz
Output DC Voltage 58.8V ± 0.2V
Output Current 8A ± 0.5A
Pre-Charge Current 3A ± 0.5A
Protections • Short Circuit Protection: Yes
• Over Voltage Protection: Stop charging when output voltage > Vmax × 1.05
• Over Current Protection: Stop charging when output current > rating × 1.3
• Under Voltage Protection: Stop charging
LED Indicator • Power On: RED
• Charging: ORANGE
• Full Charge: GREEN
• Error: ORANGE Flash
Operating Temperature 0℃ ~ 40℃
Operating Humidity 20% ~ 85%
Storage Temperature -20℃ ~ 70℃
Operating Altitude ≤ 2000m
Dimensions 263 × 157 × 71 mm
Weight 2.5 kg
Safety Certifications cTUVus, TUV, CE, FCC, CB
IP Code IP54
