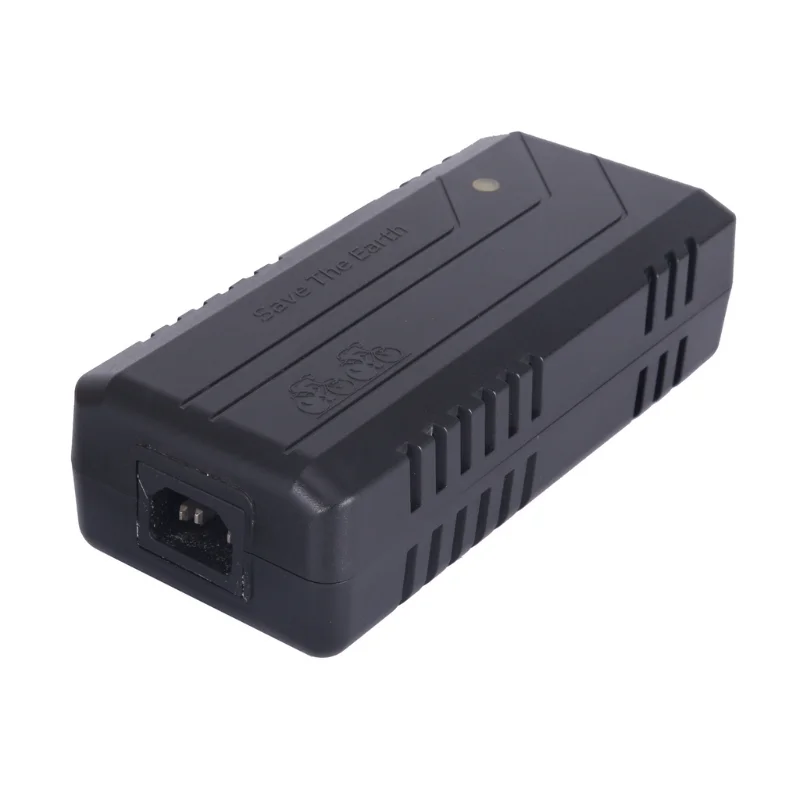

HP1202L3 battery Charger 36v2a for Ebike Lithium Battery

Model HP1202L3
Input Voltage 100-240V
Output  Voltage 36V
Output Current 2A
Dimension L*W*H(mm) 154*71.5*40
N.W.(kg) 0.55kg
Safety Certification cTUVus,TUV-GS,PSE,CE,UKCA,FCC
Case Material Plastics
Battery Type Lead-acid(Li-ion)

The HP1202L3 is a high-performance 36V2A portable charger for e-bike lithium batteries. Compact, lightweight, and designed for easy travel, it provides fast and safe charging for 36-volt electric bikes. This 36-volt portable charger for electric bikes includes full protection features such as short-circuit, overvoltage, and temperature control, making it ideal for daily riders and commuters.

HP1202L3 36V32A is a powerful and compact portable charger for ebike lithium batteries. Engineered for 36V electric bike systems, it delivers a stable 2A output for efficient charging. Whether you’re at home, in the office, or on the go, this 36 volt portable charger for electric bike is your ideal charging solution.

Its lightweight and travel-friendly design fits easily into backpacks, making it perfect for commuters and long-distance riders. The HP1202L3 is equipped with essential safety features, including overcharge, reverse polarity, and thermal protection, ensuring reliable operation and battery longevity. Built with durable materials and universal DC connectors, it’s compatible with most 36V e-bike brands on the market. Stay powered up with this portable and dependable charging solution.

Specifications

HP1202L3(10S) 36V 2A Lithium Battery Charger
Model No. HP1202L3 (10S) – 36V 2A
Input Voltage AC 100 ~ 240V / 50Hz
Input Current < 1A
Output Voltage 42V ± 0.2V
Output Current 2A ± 0.2A
No Load Voltage 0 ~ 41.5V (Pulsed)
Vmax of CC Charging 41.5V ± 0.2V
Efficiency ≥ 82%
Conversion Mode Switched
Charging Mode CC / CV
LED Indicator 🔴 Red: Power On
🟡 Yellow: Charging
🟢 Green: Full Charge
🔴 Red Flash: Repair charging (Low Voltage Battery)
Short Circuit Protection Yes
Feedback Protection Yes
Operating Temperature 0℃ ~ 40℃
Operating Humidity 20% ~ 80%
Preservation Temperature -10℃ ~ 85℃
Operating Height 3000 Feet
Dimensions 154 × 71.5 × 40 mm
Weight / Colour 0.55 kg / Black Plastic
Series Available HP1202L3 – 36V 2A
RoHS Compliant Yes
Certifications cTUVus, TUV-GS, PSE, CE, UKCA, FCC
