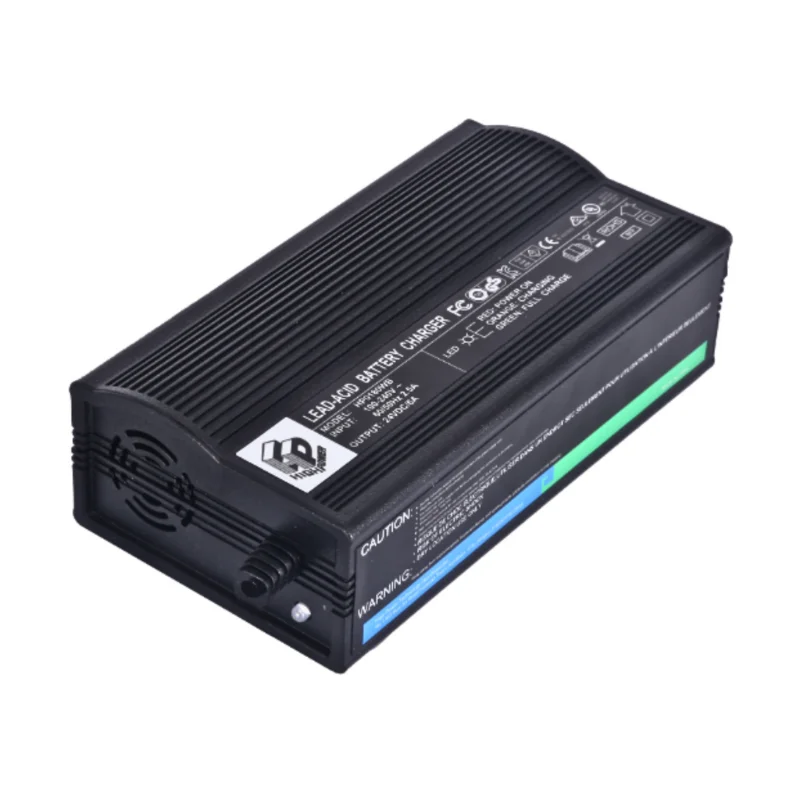

HP0180WB Charger for E-bike with Lithium and Lead Acid Batteries

Categories , ,
Model HP0180WB(L2)
Input Voltage 100-240V
Output  Voltage 24V
Output Current 6A
Dimension L*W*H(mm) 185*93*55
N.W.(kg) 0.81kg
Safety Certification TUV-GS, UKCA,cTUVus,CE,KC,SAA,FCC,PSE,EN60601,ISO7176
Case Material Plastics
Battery Type Lead-acid(Li-ion)

The HP0180W 24V6A ebike charger is designed to efficiently charge 24V lithium and lead acid batteries. This 24 volt 6amp ebike battery charger delivers quick, stable, and reliable performance for electric bikes. With built-in smart protections and wide battery compatibility, it ensures safe and convenient charging at home or on the go.

Built for performance and versatility, the HP0180W 24V6A ebike charger is ideal for charging lithium or lead acid battery systems on 24V electric bikes. As a reliable 24 volt 6amp ebike battery charger, it delivers consistent power with intelligent protections against overvoltage, short-circuit, and overheating.

Its compact and durable design makes it suitable for personal or commercial e-bike use. The high-efficiency charging profile shortens downtime, allowing users to ride longer with fewer interruptions. Whether you’re replacing a factory charger or upgrading to a more powerful model, the HP0180W ebike charger offers the performance and reliability modern riders demand.

It’s fully compatible with most 24V e-bike batteries and ensures safe, fast charging wherever you are.

Specifications

HP0180WB(L2) 24V 6A Lead Acid / Li-ion Battery Charger
Model No. HP0180WB(L2) – 24V 6A
Input Voltage AC 100V ~ 240V, 50/60Hz
Output Voltage 29.4V ± 0.3V
Output Current 6.0A ± 0.3A
Pre-charge Current 0.5A ± 0.2A
Efficiency ≥ 80%
Constant Current Fast Charge 21V – 28V ± 1V / 6A
Short Circuit Protection Yes (Stops charging, Red LED flashes: Short battery error)
Over Current Protection Stops charging when output current > 1.3 × rated current
Over Voltage Protection Stops charging when output voltage > Vmax × 1.05
Over Charge Protection Stops charging
Operating Temperature 0℃ ~ 40℃
Operating Humidity 20% ~ 85%
Storage Temperature -20℃ ~ 70℃
Operating Height ≤ 2000m
Dimensions 185 × 93 × 55 mm
Weight 0.81 kg
Case Material Black Plastic
LED Indication Power On: Red
Charging: Yellow
Charged: Green
Error (Short battery): Red LED flashes
Series Available HP0180WA(L1) – 12V Imax: 8A
HP0180WB(L2) – 24V Imax: 6A
HP0180WC(L3) – 36V Imax: 4A
HP0180WD(L4) – 48V Imax: 3A
RoHS Compliant Yes
Certifications TUV-GS, UKCA, cTUVus, CE, KC, SAA, FCC, PSE, EN60601, ISO7176
