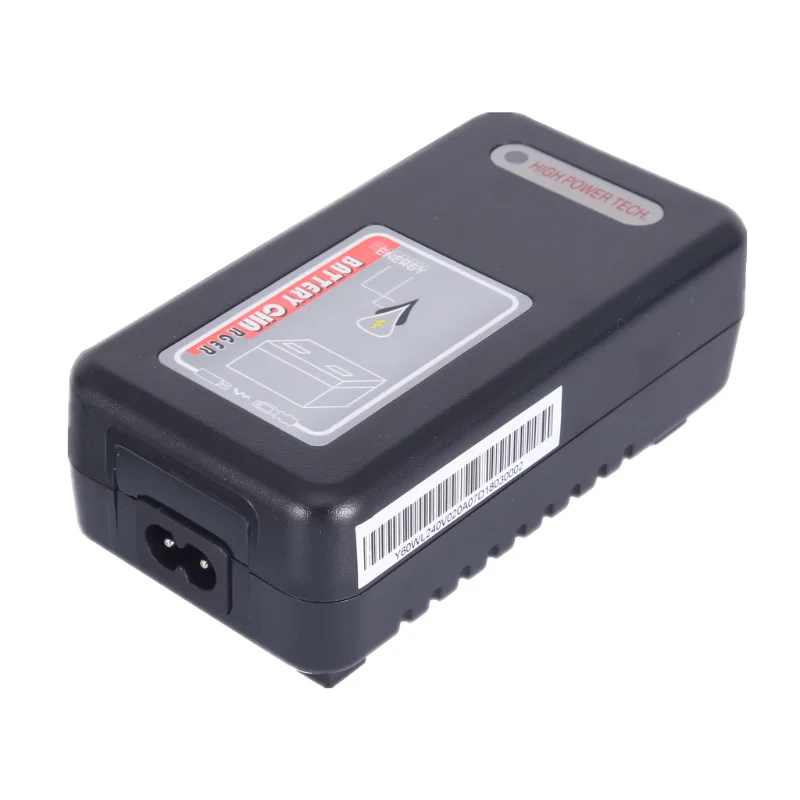

HP0060WB(L2) 24V 2A charger is a compact medical charger for light-duty power wheelchairs, meeting ISO-7176 and EN60601 medical safety requirements. It supports 24V lead acid and lithium-ion battery packs.
Low-current gentle charging reduces battery heat and aging, ideal for overnight charging. Built-in multi-protection ensures safety for end users. Small lightweight housing is easy to carry for travel. We provide custom mobility plugs, packaging and OEM branding for mobility dealers.
FAQ
Is OEM private label available for HP0060WB(L2)?
Yes, custom logo, packaging and wheelchair XLR connectors can be customized for bulk orders.
What standards does this charger comply with?
ISO-7176 and EN60601 medical standards; TUV-GS,UKCA,cTUVus,FCC,CE,SAA,KC,PSE are optional.
Which batteries can it charge?
24V lead acid and 24V Li-ion batteries for power wheelchairs.
Is it portable?
Yes, compact lightweight design, perfect for folding and portable power wheelchairs.
Specifications
HP0060WB(L2)-25 – 24V / 2A Lead-Acid/lithium Battery Charger
| Model No. |
HP0060WB(L20)-25 (24V / 2A) |
| Input Voltage |
AC 100 – 240V (50/60Hz) |
| Output Current |
2A ± 0.2A |
| Output Voltage |
29.2V ± 0.3V |
| Pre-Charge Current |
0.6A ± 0.3A |
| Charge Mode |
Constant Current, Constant Voltage |
| Protections |
• Over Voltage – Stop charging when output > Vmax × 1.5
• Over Load – Stop charging when current > rating × 1.3
• Short Circuit – Fuse cut / Stop charging
• Over Charge – Auto cut-off
• Under Voltage – Auto cut-off |
| Timers |
• Pre-Charge: 2H
• Constant Current (CC): 15H |
| LED Indication |
• Power On: Red
• Charging: Orange
• Full Charge: Green
• Error: Orange Flash |
| Efficiency |
≥ 82% |
| Operating Temperature |
0℃ ~ 40℃ |
| Operating Humidity |
20% ~ 80% |
| Storage Temperature |
-10℃ ~ 85℃ |
| Dimensions |
128 × 66 × 42 mm |
| Weight / Case |
0.4kg / Black Plastic |
| Series Available |
HP0060WB(L2)-25 – 24V / 2A |
| Certifications |
TUV-GS, UKCA, cTUVus, FCC, CE, SAA, KC, PSE, IEC60601, ISO7176 |
| Compliance |
RoHS Compliant |
