HP8204B electric wheelchair charger 24V6A lead acid battery

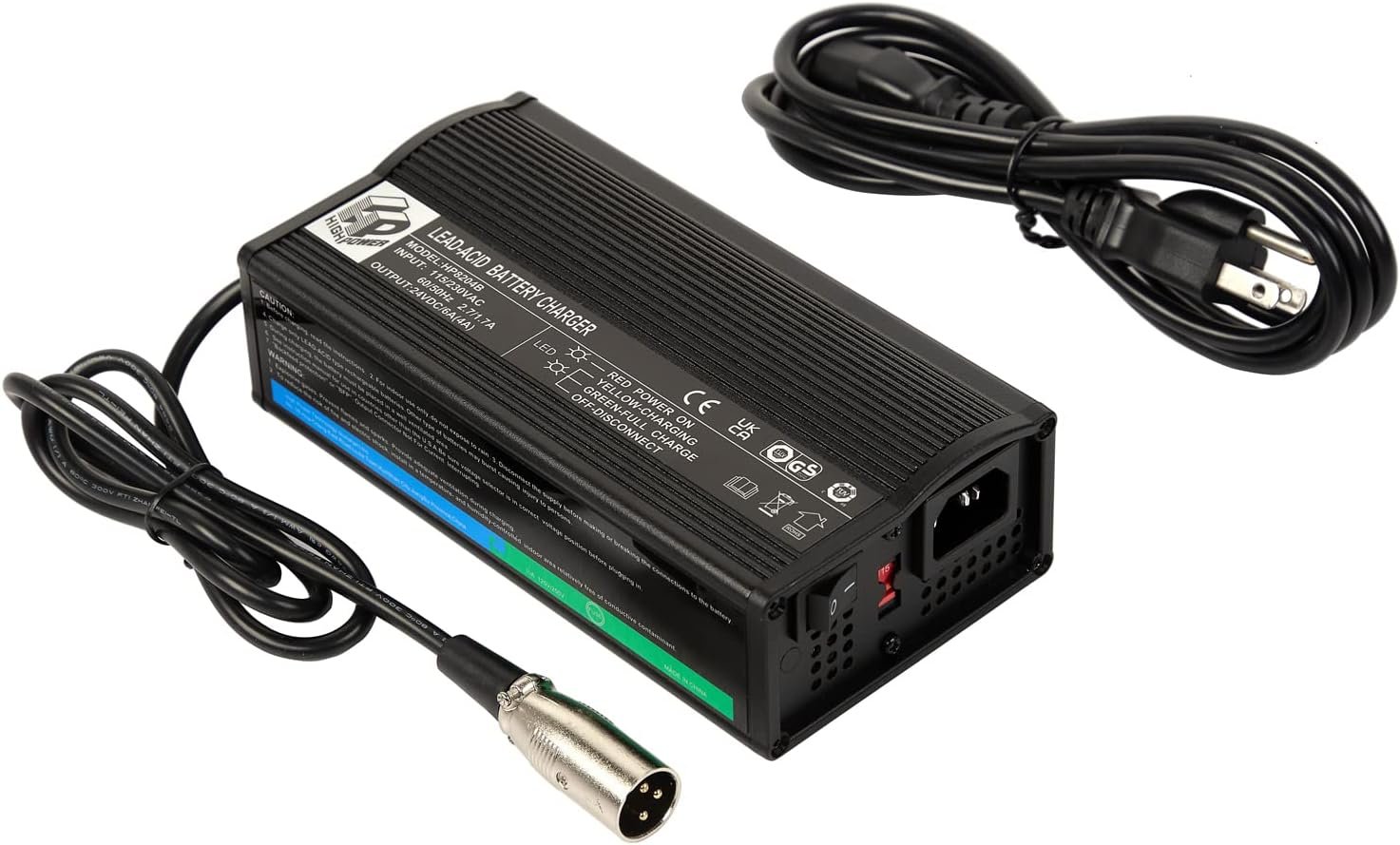

HP8204B 24V5A Electric Wheelchair Lead Acid Battery Charger | OEM UL Certified - Image 2

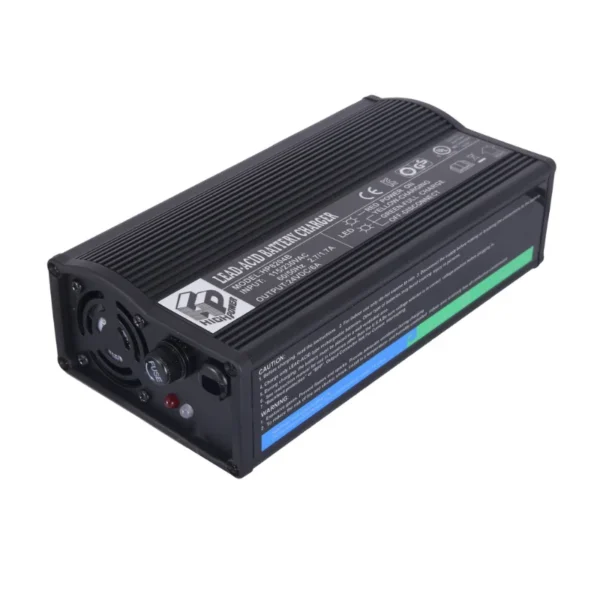

HP8204B 24V5A Electric Wheelchair Lead Acid Battery Charger | OEM UL Certified

Model: HP8204B
Input Voltage: 100-240V AC 50/60Hz
Output: 24V, 5A
Compatible Battery: 24V Lead Acid
Certifications: UL, optional TUV-GS, UKCA,cTUVus,CE,KC
Protection: Overcharge, short circuit, reverse polarity, over temperature
Connector: XLR mobility plug / customizable
Housing: Alumium
Application: Electric wheelchairs, lead-acid mobility scooters
Service: Wholesale, OEM & private label supported

The HP8204B 24V6A electric wheelchair charger is designed for lead acid battery systems, offering efficient and reliable performance. This 24-volt battery charger for electric wheelchair delivers a consistent output, enabling quick and safe charging for mobility devices. Its durable build and smart safety features make it ideal for daily use at home or in care settings.

Categories: , Tags: , , , ,

UL Certified 24V5A Wheelchair Lead Acid Battery Charger HP8204B

We are a professional 24V 5A wheelchair battery charger manufacturer. HP8204B electric wheelchair charger provides dependable charging solution for lead acid battery powered mobility equipment. Built with high-quality components, it supports safe and stable charging for electric wheelchairs and mobility scooters.

Key Safety Protection & Certification

This mobility scooter charger comes with short-circuit, overload, overvoltage and over-temperature protection. It complies with IEC 60601-1 medical safety standard and available with UL certification. We support OEM & ODM private label service for bulk wholesale orders.

Specifications & Compatibility

Input: 100-240V AC 50/60Hz
Output: 24V 5A
Battery type: 24V lead acid battery
Compatible with most electric wheelchairs, mobility scooters and medical transport devices.

Customization Service

Custom plug, housing color, logo printing and packaging are available. We accept wholesale orders for distributors, importers and medical equipment suppliers.

FAQ

Can you do OEM private label for this 24V5A wheelchair charger?

Yes, we support OEM, custom logo, plug types and packaging for bulk wholesale orders.

What certifications does HP8204B wheelchair charger have?

TUV-GS, UKCA,cTUVus,CE,KC are available.

What battery type is this charger for?

Designed for 24V lead-acid batteries used on electric wheelchairs and mobility scooters.

What is your MOQ for wholesale?

Sample 1-2 pcs available, OEM bulk order MOQ starts from 50 units.

Specifications

HP8204B 24V 5A Lead Acid Battery Charger
Model No. HP8204B – 24V 5A
Output Current 5A ± 3%
No Load Max Output Voltage 31.2V ± 1%
Charge Max Voltage 29.4V ± 0.2V
Input Voltage 115V / 230V Option Switch
115V (95V ~ 132V)
230V (180V ~ 264V)
Over-Voltage Protection Stops charging when output > 32.5V
Overload Protection Stops charging when about 10A
Short Circuit Protection Output fuse severs or stop charging
Efficiency AC-DC ≥ 82%
Operating Temperature 0℃ ~ 40℃
Operating Humidity 20% ~ 80%
Preservation Temperature -10℃ ~ 85℃
Dimensions 180 × 93 × 53 mm
Weight 0.85 kg
Case Material Black Aluminium
Series Available HP8204B – 24V / 5A
HP8204B – 24V / 6A
RoHS Compliant Yes
Certifications TUV-GS, UKCA, cTUVus, CE, KC
