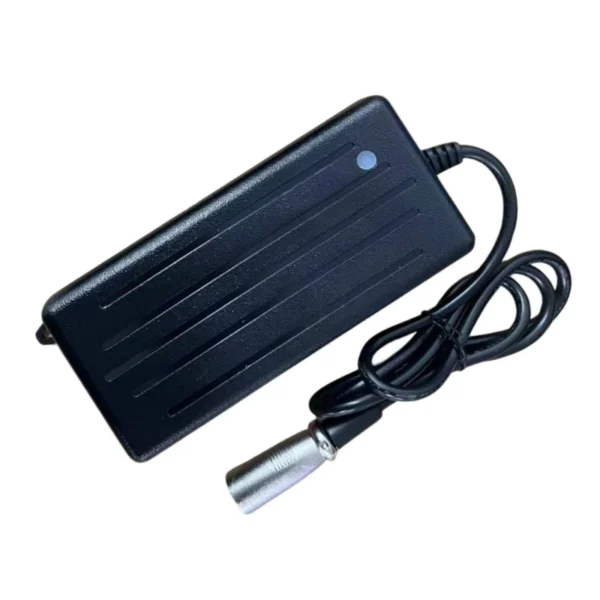

HP0090W 24V3A lithium/lead acid charger for scooter

HP0090W 24V 3A Mobility Scooter Charger for Lead Acid & Lithium Batteries

Model: HP0090W
Input Voltage: 100-240V AC 50/60Hz
Output: 24V, 3A
Compatible Battery: 24V Lead Acid / 24V Lithium
Certifications: UL, optional TUV-GS,UKCA,cTUVus,FCC,CE,SAA,KC,PSE,EN60601,ISO7176
Protection: Overcharge, short circuit, reverse polarity, over temperature
Connector: XLR mobility plug / customizable
Housing: Compact plastic case
Application: Portable mobility scooters
Service: Wholesale, OEM & private label supported

HP0090W 24V 3A mobility scooter charger for lead acid and lithium batteries. Built for lightweight mobility scooters, full safety protection, OEM branding available.

Categories: ,

HP0090W 24V 3A charger is designed for standard mobility scooters. It supports both 24V lead acid and lithium battery packs, a popular replacement part for after-sales market and mobility retailers.

Multiple safety protections prevent overcharge, short circuit, reverse connection and overheating. Simple plug-and-play operation. We can customize mobility XLR plugs, power cords and printed brand logo for wholesale customers.

FAQ

Can we customize plugs and packaging for HP0090W?

Yes, OEM private label, custom packaging and mobility XLR connectors are available for bulk orders.

Does it charge both lead acid and lithium mobility scooter batteries?

Yes, compatible with 24V lead acid and 24V lithium mobility scooter batteries.

What certifications can you provide?

UL certified; TUV-GS,UKCA,cTUVus,FCC,CE,SAA,KC,PSE,EN60601,ISO7176 can be issued as requested.

What mobility scooters does it fit?

Most 24V lightweight mobility scooters and portable mobility aids.

Specifications

HP0090WB(L2) 24V 3A Mobility Scooter Battery Charger
Model No. HP0090WB(L2) – 24V 3A
Input Voltage AC 100 ~ 240V, 50/60Hz
No Load Output Voltage 29.2V ± 0.2V
Output Current 3A ± 0.1A
Full Charge Current 0.15A ± 0.1A
LED Indicator Power On: Blue
Charging: Red
Charged: Green
Protections Over Current: Yes
Over Voltage: Yes
Short Circuit: Yes
Timer (CC Mode): Over 10H stop charging
Timer (Pre-charge): Over 2H stop charging
Reverse Polarity: Yes
Feedback Protection: Yes
Operating Temperature -10℃ ~ 40℃
Storage Temperature -20℃ ~ 80℃
Operating Humidity 20% ~ 85% RH
Operating Height 2000M
Dimensions 128 × 66 × 42 mm
Weight / Colour 0.4 kg / Black PC
Series Available HP0090W(L2) 24V /3A
HP0090W(L2)-25 24V / 3A
RoHS Compliant Yes
Certifications TUV-GS, UKCA, cTUVus, FCC, CE, SAA, KC, PSE, EN60601, ISO7176
