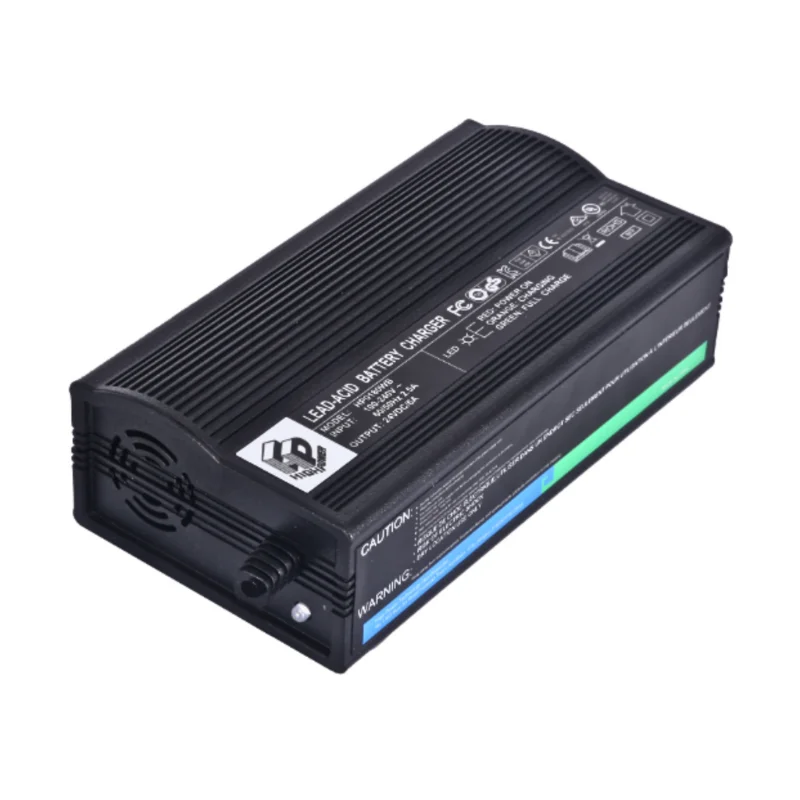

The HP0180W 36V4A charger for electric bike is engineered to support both lithium and lead acid battery technologies. Its 4A output ensures faster charging times while maintaining excellent thermal performance and electrical stability. Designed for daily e-bike riders, this 36V battery charger for electric bike enhances user experience through smart protection features, including short-circuit, overvoltage, and temperature safeguards.
Its compact and robust design makes it suitable for at-home or portable use. Whether your electric bike uses a sealed lead acid or modern lithium battery, the HP0180W offers wide compatibility and long-term reliability. If you’re looking for a high-efficiency charger for electric bike applications, this model provides excellent value and safety for your ride.
Specifications
HP0180WC(L3) 36V 4A Lead Acid / Li-ion Battery Charger
| Model No. |
HP0180WC(L3) – 36V 4A |
| Input Voltage |
AC 100V ~ 240V, 50/60Hz |
| Output Voltage |
42.4V ± 0.3V |
| Output Current |
4.0A ± 0.3A |
| Pre-charge Current |
0.5A ± 0.2A |
| Efficiency |
≥ 80% |
| Protections |
Short Circuit Protection – Stops charging
Over Current Protection – Stops charging when > 1.3 × rated current
Over Voltage Protection – Stops charging when > Vmax × 1.05
Feedback Protection – Stops charging
Low Voltage Protection – Stops charging
Timer Protection – Stops charging |
| Operating Temperature |
0℃ ~ 40℃ |
| Operating Humidity |
20% ~ 85% |
| Storage Temperature |
-20℃ ~ 70℃ |
| Operating Height |
≤ 2000m |
| Dimensions |
185 × 93 × 55 mm |
| Weight |
0.81 kg |
| Case Material |
Black Plastic |
| LED Indication |
Power On: Red
Charged: Green
Error (Short battery): Red LED flashes |
| Series Available |
HP0180WA(L1) – 12V Imax: 8A
HP0180WB(L2) – 24V Imax: 6A
HP0180WC(L3) – 36V Imax: 4A
HP0180WD(L4) – 48V Imax: 3A |
| RoHS Compliant |
Yes |
| Certifications |
TUV-GS, UKCA, cTUVus, CE, KC, SAA, FCC, PSE |
