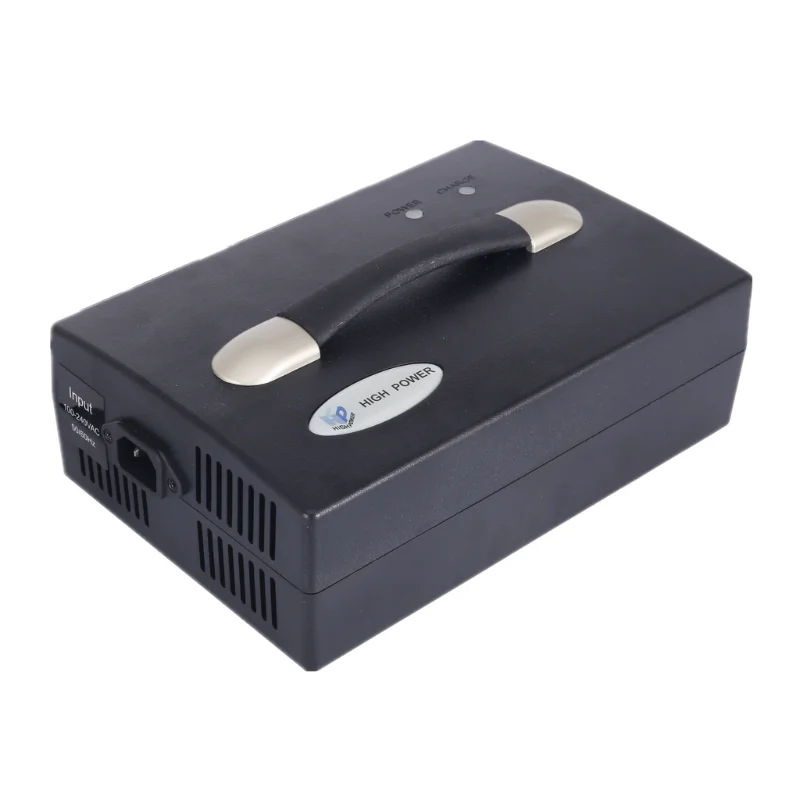

HP0420D(L4)F 48V 7A Ebike Battery Charger for Lead Acid & Lithium Ebike Batterie

Categories , ,
Model HP0420D(L4)F
Input Voltage 100-240V
Output  Voltage 48V
Output Current 7A
Dimension L*W*H(mm) 240*170*80
N.W.(kg) 2.20kg
Safety Certification UKCA,cTUVus,FCC,CE,PSE
Case Material Plastics
Battery Type Lead-acid(Li-ion)

The HP0420W 48V 7A ebike charger delivers ultra-fast charging for both lead acid and lithium batteries. Designed specifically for 48-volt electric bicycles, this powerful charger features smart voltage detection, temperature control, and multiple protection systems. With its high 7A output current, it can charge most ebike batteries 30% faster than standard chargers. The rugged housing ensures durability for both home and commercial use. Perfect for delivery riders and ebike enthusiasts who need reliable, rapid charging solutions.

The HP0420W 48V 7A ebike battery charger sets a new standard for high-performance electric bicycle charging. Engineered to work seamlessly with both lead acid and lithium-ion battery systems, this professional-grade charger automatically detects battery type and adjusts charging parameters accordingly. Its 7-amp output current provides significantly faster charging compared to standard 3-5A chargers, making it ideal for high-capacity ebike batteries used in delivery services or long-distance commuting.

Advanced safety features include over-voltage protection, short-circuit prevention, temperature monitoring, and automatic shut-off when charging is complete. The durable, heat-resistant casing with integrated cooling vents ensures stable operation even during extended use. Clear LED indicators display real-time charging status, while the compact design (XXmm × XXmm) makes it easy to store in panniers or workshop shelves.

Whether you need to quickly charge your 48V electric bike between deliveries or maintain your battery’s health during off-season storage, the HP0420W delivers exceptional performance. Compatible with most major ebike brands and battery configurations, this charger is the smart choice for serious cyclists and commercial operators alike.

Specifications

HP0420D(L4)F 48V 7A Lead acid/Lithium Battery Charger
Model HP0420D(L4)F 48V 7A
Input Voltage AC 100 ~ 240V, 50/60Hz
No Load Output Voltage 54.6V ± 0.3V
Output Current 7A ± 0.5A
Full Charge Current 0.4A ± 0.3A
LED Indicator Power On: Green
Charging: Red
Charged: Green
Over Current Protection Yes
Over Voltage Protection Yes
Timer (CC Fast Charging) Stops charging after 15h
Pre-Charge Timer Protection 2h, stops charging if no fast charging
Short Circuit Protection Stops charging, Red LED blinks
Reverse Polarity Protection Stops charging
Feedback Protection Stops charging
Operating Temperature -10℃ ~ 40℃
Storage Temperature -20℃ ~ 80℃
Operating Humidity 20% ~ 85% RH
Operating Height Up to 2000m
Dimensions 240 × 170 × 80 mm
Weight 2.2 kg
Case Material Black PC
Series Available HP0420B(L2)F 24V Imax: 15A
HP0420C(L3)F 36V Imax: 10A
HP0420D(L4)F 48V Imax: 7A
HP0420E(L5)F 64V Imax: 5.5A
HP0420F(L6)F 72V Imax: 4.5A
RoHS Compliant Yes
