HP0180Wb 24V6A lead acid lithium wheelchair battery charger with ISO-7176 EN60601

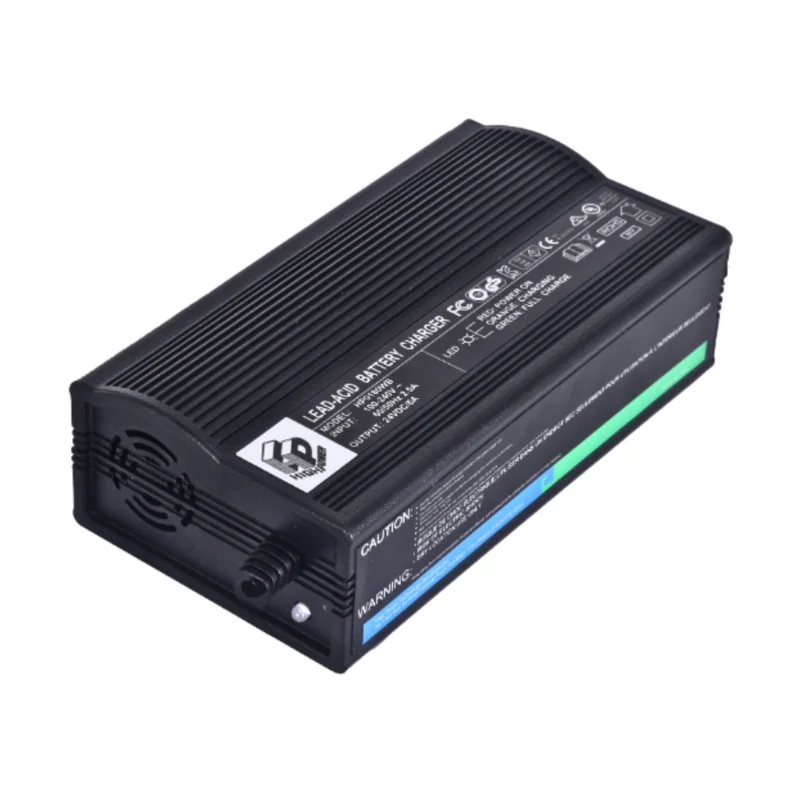

HP0180WB(L2) 24V6A Lead Acid/Li-ion Wheelchair Battery Charger with ISO-7176 & EN60601 Certification

Model: HP0180WB(L2)
Input Voltage: 100-240V AC 50/60Hz
Output: 24V, 6A
Compatible Battery: 24V Lead Acid / 24V Li-ion
Certifications: ISO-7176, EN60601, UL, optional CE, UKCA, FCC
Protection: Overcharge, short circuit, reverse polarity, over temperature
Connector: XLR mobility plug / customizable
Housing: Plastics
Application: Heavy-duty power wheelchairs, medical mobility equipment
Service: Wholesale, OEM & private label supported

HP0180WB(L2) 24V 6A medical-grade wheelchair charger, ISO-7176 & EN60601 certified. Works for lead acid and Li-ion batteries for power wheelchairs, OEM supported.

Categories: , , Tags: , , , ,

HP0180WB(L2) 24V 6A charger is a medical mobility-grade power supply for heavy-duty power wheelchairs. It holds ISO-7176 and EN60601 medical electrical safety certifications, suitable for professional rehabilitation markets. Supports both 24V lead acid and lithium-ion battery packs. High 6A output enables faster charging while maintaining strict medical safety standards. Comprehensive multi-protection system ensures safe operation for end users. We provide medical mobility XLR connectors and full OEM branding service for medical mobility manufacturers and distributors.

FAQ

Can we do OEM for HP0180WB(L2)?

Yes, custom logo, medical packaging and wheelchair XLR plugs are available for bulk wholesale orders.

What certifications does this charger have?

ISO-7176 and EN60601 medical certifications; TUV-GS, UKCA,cTUVus,CE can also be supplied on request.

Does it charge both lead acid and lithium-ion wheelchair batteries?

Yes, compatible with 24V lead acid and 24V Li-ion power wheelchair batteries.

What is the main advantage?

Medical safety certification, higher 6A current for faster charging of heavy-duty power chairs.

Specifications

HP0180WB(L2)-25 24V 6A Lead-Acid/Lithium Battery Charger

Model No. HP0180WB(L2)-25-6 (24V 6A)
Input Voltage AC 100 – 240V (50/60Hz)
Output Current 6.0A ± 0.5A
Output Voltage 29.4V ± 0.3V
Pre-Charge Current 1.0A ± 0.3A
Efficiency ≥ 80%
Constant Current Fast Charge 21V – 28V ± 1V / 6A
Protections • Short Circuit – Yes
• Over Current – Stop Charging
• Over Voltage – Stop Charging when > Vmax × 1.05
• Reverse Polarity – Stop Charging
• Over Charge – Stop Charging
• Under Voltage – Stop Charging
Operating Temperature 0℃ ~ 40℃
Operating Humidity 20% ~ 85%
Storage Temperature -20℃ ~ 80℃
Operating Height ≤ 2000M
Dimensions 185 × 93 × 55 mm
Weight / Case 0.81kg / Black Plastic
LED Indication • Power On: Red
• Charging: Orange
• Charged: Green
Series Available HP0180WB(L2)-25-5 (24V/5A), HP0180WB(L2)-25-6 (24V/6A)
Certifications TUV-GS, UKCA, cTUVus, CE, KC, SAA, FCC, PSE, EN60601, ISO7176
