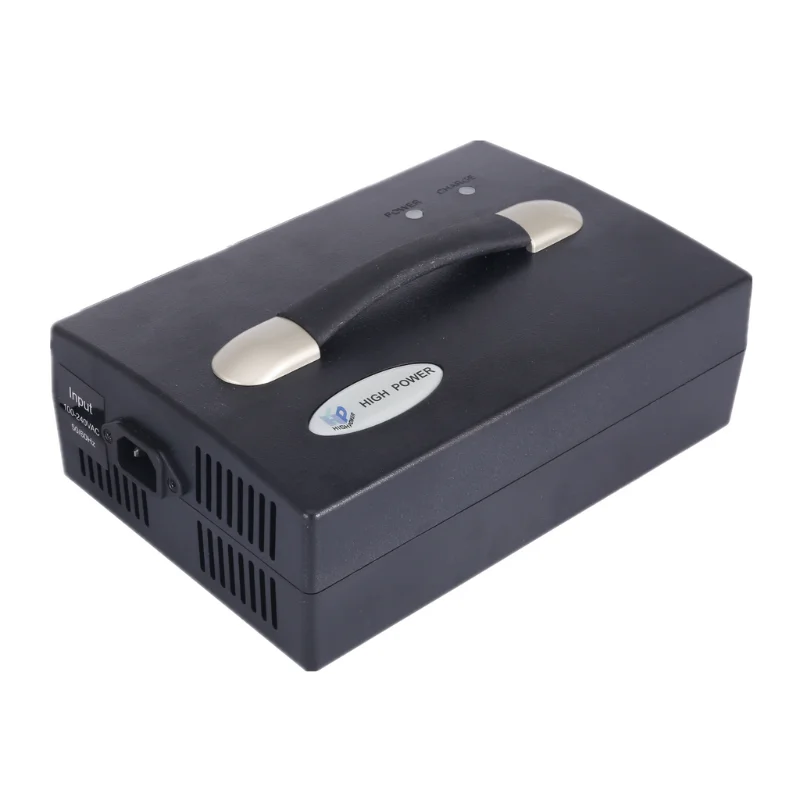

HP0420E(L5)F 60v scooter charger for Lead Acid & Lithium Batteries

Categories , ,
Model HP0420E(L5)F
Input Voltage 100-240V
Output  Voltage 60V/64V
Output Current 5.5A
Dimension L*W*H(mm) 240*170*80
N.W.(kg) 2.20kg
Safety Certification UKCA,cTUVus,FCC,CE,PSE
Case Material Plastics
Battery Type Lead-acid(Li-ion)

The HP0420W 60V 4.5A cargo scooter charger provides fast and safe charging for both lead acid and lithium batteries. Designed specifically for 60-volt cargo scooters, this charger features intelligent voltage detection, overcharge protection, and a durable build. Its 4.5A output ensures quick power restoration, minimizing downtime. The compact design makes it ideal for home or workshop use. Whether you need to maintain or revive your scooter’s battery, the HP0420W delivers reliable performance every time.

The HP0420W 60V 4.5A cargo scooter battery charger is a high-performance charging solution built for commercial and personal cargo scooters. Compatible with both lead acid and lithium batteries, it automatically detects battery type and adjusts charging parameters for optimal efficiency and longevity.

With a powerful 4.5A output, this charger quickly replenishes 60-volt cargo scooter batteries, ensuring minimal waiting time between rides. Advanced safety features, including overcharge protection, short-circuit prevention, and temperature control, safeguard your battery during charging.

The compact and lightweight design makes it easy to store or transport, perfect for delivery riders or workshop use. LED indicators provide clear charging status updates, so you always know when your battery is ready. Whether you rely on your cargo scooter for business or leisure, the HP0420W 60v battery charger for electric scooter ensures dependable power whenever you need it.

Specifications

HP0420E(L5)F 60V 5A Scooter Charger
Model HP0420E(L5)F 60V 5A
Input Voltage AC 100 ~ 240V, 50/60Hz
No Load Output Voltage 73.8V ± 0.2V
Output Current 5A ± 0.2A
Full Charge Current 0.6A ± 0.5A
LED Indicator Power On: Red
Charging: Orange
Charged: Green
Over Current Protection Stops charging, Red LED blinks
Over Voltage Protection Stops charging, Red LED blinks
Timer in CC & CV Stops charging after 15h even if battery not fully charged
Pre-Charge Timer Protection Stops charging after 2h
Battery Aging LED Indicator Reduces current to 4A for 3h, then LED turns Green
Short Circuit Protection Stops charging, Red LED blinks
Reverse Polarity Protection Stops charging
Feedback Protection Stops charging
Operating Temperature -10℃ ~ 40℃
Storage Temperature -20℃ ~ 80℃
Operating Humidity 20% ~ 85% RH
Operating Height Up to 2000m
Dimensions 240 × 170 × 80 mm
Weight 2.2 kg
Case Material Black PC
Series Available HP0420B(L2)F 24V Imax: 15A
HP0420C(L3)F 36V Imax: 10A
HP0420D(L4)F 48V Imax: 7A
HP0420E(L5)F 64V Imax: 5.5A
HP0420F(L6)F 72V Imax: 4.5A
RoHS Compliant Yes
