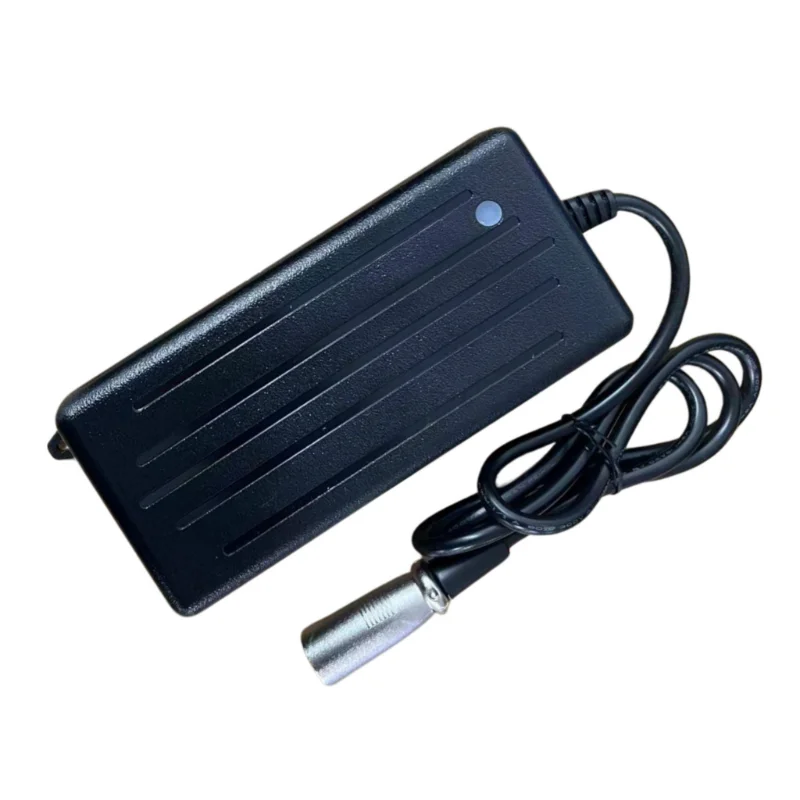

HP0090WB(L2)-25 24V3A Wheelchair Battery Charger – Lead Acid & Li-ion | ISO-7176 & EN60601 Certified

Model HP0090WB(L2)-25
Input Voltage 100-240V
Output  Voltage 24V
Output Current 3A
Dimension L*W*H(mm) 128*66*42
N.W.(kg) 0.4kg
Safety Certification TUV-GS,UKCA,cTUVus,FCC,CE,SAA,KC,PSE,ISO7177
Case Material Plastics
Battery Type Lead-acid(Li-ion)

The HP0090WB(L2)-25 is a reliable 24V3A wheelchair battery charger designed for both lead acid and lithium-ion batteries. Certified to ISO-7176 and EN60601 standards, it ensures safe and efficient charging for electric wheelchairs. Its compact design and medical-grade safety features make it ideal for personal mobility devices. This 24V3A wheelchair battery charger provides stable performance and compatibility with a wide range of mobility equipment.

The HP0090WB(L2)-25 24V3A wheelchair battery charger is built to deliver dependable and safe power for mobility aids using lead acid or lithium-ion batteries. Featuring ISO-7176 and EN60601 certifications, this charger meets strict international safety and performance standards, making it ideal for medical and personal mobility applications. Its 24V3A output provides efficient and controlled charging, preventing overcharging and extending battery lifespan.

This charger is compatible with a wide range of electric wheelchairs, mobility scooters, and medical transport devices that require 24V batteries. The HP0090WB(L2)-25 is engineered with advanced protection features including overvoltage, short circuit, and thermal safeguards. With its quiet operation and compact build, it’s perfect for home or institutional use. Whether you’re replacing an old charger or upgrading to a medically certified one, this 24V3A battery charger for wheelchair use ensures maximum reliability and safety.

Specifications

HP0090WB(L2)-25 – 24V 3A Lead-Acid/Lithium Battery Charger

Model No. HP0090WB(L2)-25 (24V / 3A)
Input Voltage AC 100 – 240V (50/60Hz)
No Load Output Voltage 29.2V ± 0.2V
Output Current 3A ± 0.1A
Full Charge Current 0.15A ± 0.1A
LED Indication • Power On: Blue
• Charging: Red
• Charged: Green
Protections • Over Current Protection
• Over Voltage Protection
• Short Circuit Protection
• Reverse Polarity Protection
• Feedback Protection
• Timer Protection – CC Mode >10H stop charging
• Timer Protection – Pre-Charge >2H stop charging
Operating Temperature -10℃ ~ 40℃
Storage Temperature -20℃ ~ 80℃
Operating Humidity 20% ~ 85% RH
Operating Height ≤ 2000M
Dimensions 128 × 66 × 42 mm
Weight / Case 0.4kg / Black PC
Series Available • HP0090WB(L2) – 24V / 3A
• HP0090WB(L2)-25 – 24V / 3A
Certifications TUV-GS, UKCA, cTUVus, FCC, CE, SAA, KC, PSE, EN60601, ISO7176
Compliance RoHS Compliant
