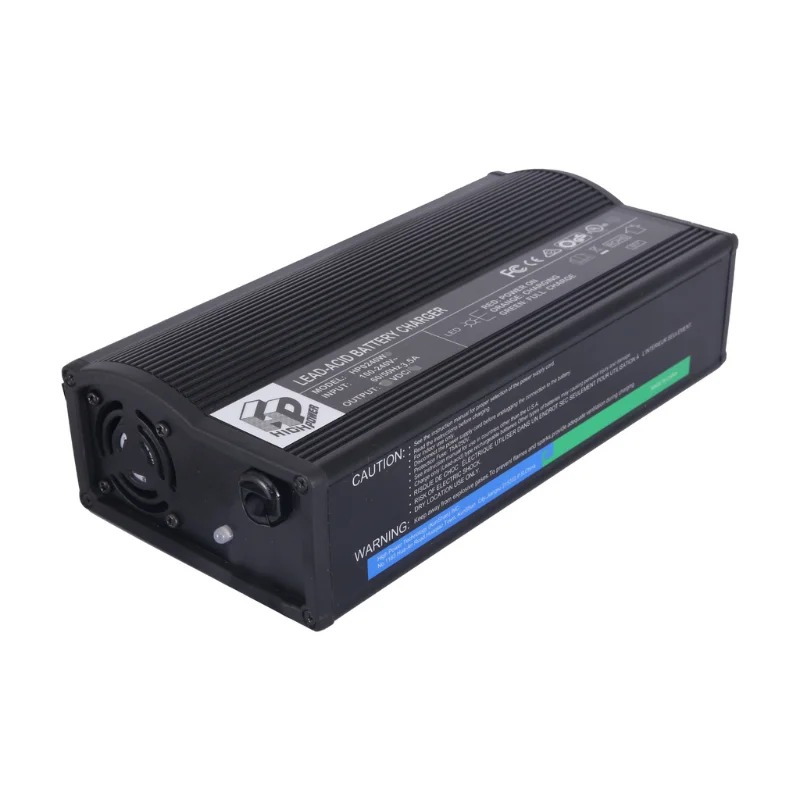

The HPN0240W 24V8A charger for electric wheelchair is engineered to provide powerful and efficient charging for a wide range of mobility devices. Whether your wheelchair uses lead acid or lithium batteries, this 24 volt battery charger ensures optimal performance. The charger features intelligent controls with automatic cutoff, protecting against overcharging, overcurrent, and overheating.
Its durable casing and compact design make it suitable for both home and facility use. With an output of 8 amps, it significantly reduces charging time while maintaining battery health. Trusted by users of electric wheelchairs and mobility scooters, the HPN0240W is a robust, safe, and efficient charging solution. It’s a dependable choice for caregivers, facilities, and users who rely on uninterrupted mobility.
Specifications
HPN0240WB(L2) 24V 8A Lead Acid & Lithium Battery Charger
| Model No. |
HPN0240WB(L2) 24V 8A |
| Input Voltage |
AC 100V ~ 240V, 50/60Hz |
| Output Voltage |
29.4V ± 0.2V |
| Output Current |
8.0A ± 0.2A |
| Pre-charge Current |
0.6A ± 0.2A |
| Efficiency |
≥ 80% |
| Constant Current (Fast Charge) |
21V – 28V ± 1V / 8A |
| Short Circuit Protection |
Yes (Red LED flashes: Short battery error) |
| Over Current Protection |
Stops charging if output current > 1.3 × rated current |
| Over Voltage Protection |
Stops charging if output voltage > Vmax × 1.05 |
| Under Voltage Protection |
Stops charging |
| Operating Temperature |
0℃ ~ 40℃ |
| Operating Humidity |
20% ~ 85% |
| Storage Temperature |
-20℃ ~ 70℃ |
| Operating Height |
≤ 2000m |
| Dimensions |
216 × 110 × 60 mm |
| Weight |
1.35 kg |
| Case Material |
Aluminum extrusion |
| LED Indication |
Power On: Red
Charging: Orange
Charged: Green
Error (Short battery): Red LED flashes |
| Series Available |
HPN0240WB(L2) – 24V Imax: 8A
HPN0240WD(L4) – 48V Imax: 4A |
| RoHS Compliant |
Yes |
| Certifications |
TUV-GS, UKCA, cTUVus, FCC, CE, SAA, KC, PSE, EN60601, ISO7176, IP54 |
