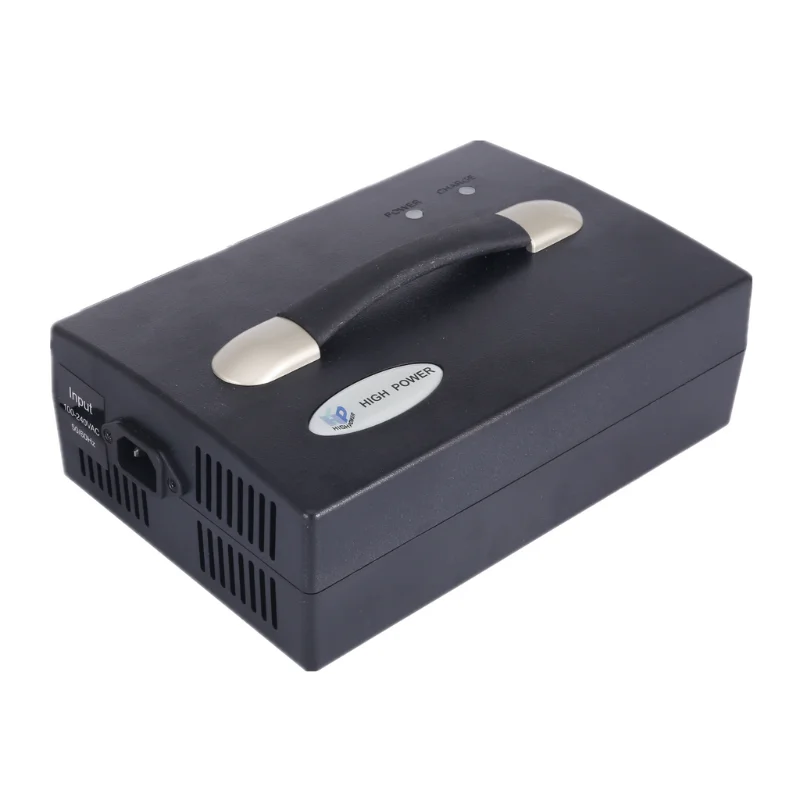

HP0420W 24V 15A charger is specially designed for power wheelchairs and mobility aids. It supports both 24V lead acid and lithium battery packs, ideal for medical mobility suppliers, rehabilitation dealers and replacement markets. Built-in multi-layer safety protection prevents overcharge, short circuit, reverse connection and overheating, critical for medical mobility devices. Stable current output extends battery lifespan. The portable integrated handle design makes it easy to carry and install. We offer custom plugs and OEM private label service for mobility distributors.
FAQ
Can I get OEM private label for this wheelchair charger?
Yes, custom logo, packaging and special wheelchair plugs can be customized for bulk orders.
Does HP0420W charge both lead acid and lithium wheelchair batteries?
Yes, compatible with 24V lead acid and 24V lithium power wheelchair batteries.
What certifications are available?
UL certified; TUV-GS,UKCA,cTUVus,FCC,CE,PSE can be provided upon request.
What mobility devices is this charger suitable for?
Mainly for power wheelchairs, also fits some 24V mobility scooters.
Specifications
HP0420B(L2)F 24V 15A Lead Acid/Lithium Battery Charger
| Model |
HP0420B(L2)F 24V15A |
| Application |
E-bike, E-wheelchair, E-scooter, Forklift, Golf Cars |
| Input Voltage |
AC 100 ~ 240V, 50/60Hz |
| No Load Output Voltage |
29.2V ± 0.2V |
| Output Current |
15A ± 0.5A |
| Full Charge Current |
1.2A ± 0.5A |
| LED Indicator |
Power On: Red
Charging: Orange
Charged: Green |
| Over Current Protection |
Stops charging, Red LED blinks |
| Over Voltage Protection |
Stops charging, Red LED blinks |
| Timer Protection (CC & CV) |
Stops charging after 15h even if battery not fully charged |
| Pre-Charge Timer Protection |
Stops charging after 2h |
| Battery Aging Indicator |
Charge current reduces to 4A for 3h, then LED turns Green |
| Short Circuit Protection |
Stops charging, Red LED blinks |
| Reverse Polarity Protection |
Stops charging |
| Feedback Protection |
Stops charging |
| Operating Temperature |
-10℃ ～ 40℃ |
| Storage Temperature |
-20℃ ～ 80℃ |
| Operating Humidity |
20% ～ 85% RH |
| Operating Height |
Up to 2000m |
| Dimensions |
240 × 170 × 80 mm |
| Weight |
2.2 kg |
| Case Material |
Black PC |
| Series Available |
HP0420B(L2)F 24V Imax: 15A
HP0420C(L3)F 36V Imax: 10A
HP0420D(L4)F 48V Imax: 7A
HP0420E(L5)F 64V Imax: 5.5A
HP0420F(L6)F 72V Imax: 4.5A |
| RoHS Compliant |
Yes |
