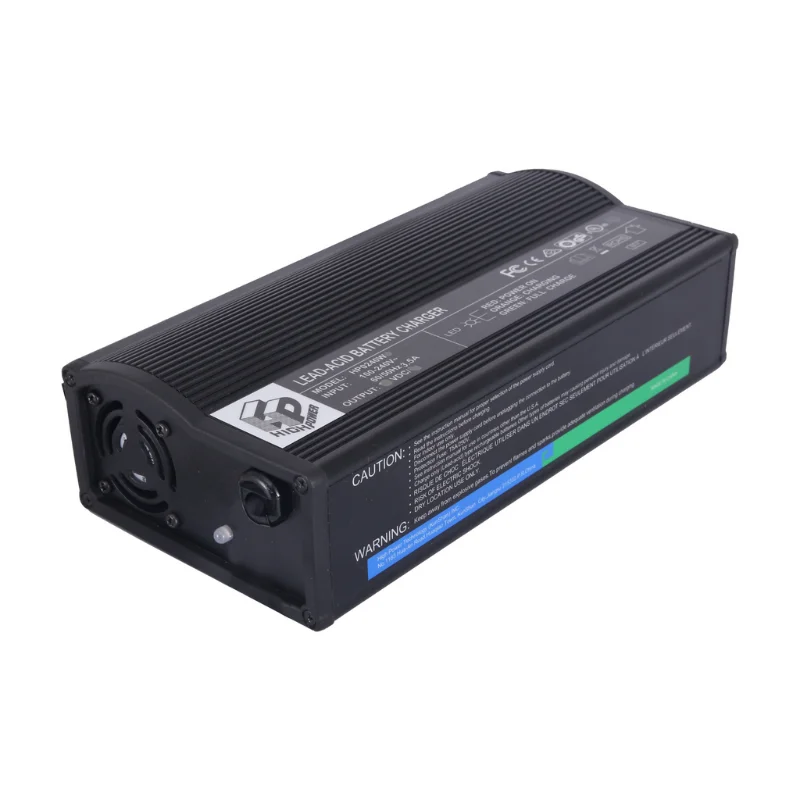

The HPN0240W 48V4A ebike battery charger offers an efficient and secure charging solution for both lithium and lead acid batteries. It is designed to deliver steady 48 volt 4 amp charging, ensuring optimal power transfer and extended battery lifespan. The charger features an intelligent control system that includes protections against overheating, overvoltage, and reverse polarity.
Its compact and lightweight design makes it easy to carry, while the durable housing guarantees long-term performance. Whether for commuting or recreational riding, this 48 volt 4amp ebike battery charger is a reliable companion for every electric bike user. The HPN0240W is perfect for riders seeking faster charging, better battery protection, and compatibility with a wide range of 48V ebike systems.
Specifications
HPN0240WD (L4) 48V 4A Lead Acid/Li-ion Battery Charger
| Model No. |
HPN0240WD (L4) 48V 4A |
| Input Voltage |
AC 100V ~ 240V, 50/60Hz |
| Output Voltage |
58.8V ± 0.2V |
| Output Current |
4.0A ± 0.2A |
| Pre-charge Current |
0.6A ± 0.2A |
| Efficiency |
≥ 80% |
| Constant Current (Fast Charge) |
42V – 56V ± 1V / 4A |
| Short Circuit Protection |
Yes (Red LED flashes: Short battery error) |
| Over Current Protection |
Stops charging if output current > 1.3 × rated current |
| Over Voltage Protection |
Stops charging if output voltage > Vmax × 1.05 |
| Under Voltage Protection |
Stops charging |
| Operating Temperature |
0℃ ~ 40℃ |
| Operating Humidity |
20% ~ 85% |
| Storage Temperature |
-20℃ ~ 70℃ |
| Operating Height |
≤ 2000m |
| Dimensions |
216 × 110 × 60 mm |
| Weight |
1.35 kg |
| Case Material |
Aluminum |
| LED Indication |
Power On: Red
Charging: Orange
Charged: Green
Error (Short battery): Red LED flashes |
| Series Available |
HPN0240WB(L2) – 24V Imax: 8A
HPN0240WD(L4) – 48V Imax: 4A |
| RoHS Compliant |
Yes |
| Certifications |
TUV-GS, UKCA, cTUVus, FCC, CE, SAA, KC, PSE, EN60601, IP54 |
